Shift Register SIPO
`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company: EAM
// Create Date: 08:15:45 04/29/2015
// Module Name: ShiftRegister_SIPO
// Project Name: Shift Register Serial Input Parallel Output
//////////////////////////////////////////////////////////////////////////////////
module ShiftRegister_SIPO(C, SI, PO);
input C,SI;
output [7:0] PO;
reg [7:0] tmp;
always @(posedge C)
begin
tmp = {tmp[6:0], SI};
end
assign PO = tmp;
endmodule
Shift Register PISO
`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company: EAM
// Create Date: 08:15:45 04/29/2015
// Module Name: ShiftRegister_PISO
// Project Name: Shift Register Parallel Input Serial Output
//////////////////////////////////////////////////////////////////////////////////
module Shiftregister_PISO(Clk, Parallel_In,load, Serial_Out);
input Clk,load;
input [3:0]Parallel_In;
output reg Serial_Out;
reg [3:0]tmp;
always @(posedge Clk)
begin
if(load)
tmp<=Parallel_In;
else
begin
Serial_Out<=tmp[3];
tmp<={tmp[2:0],1'b0};
end
end
endmodule

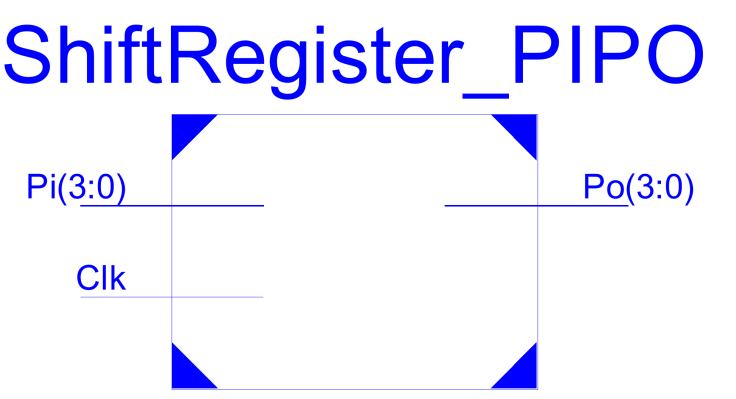

Shift Register PIPO
`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company: EAM
// Create Date: 08:15:45 04/29/2015
// Module Name: ShiftRegister_PISO
// Project Name: Shift Register Parallel Input Parallel Output
//////////////////////////////////////////////////////////////////////////////////
module ShiftRegister_PIPO(Clk,Pi,Po);
input Clk;
input [3:0]Pi;
output reg [3:0]Po;
always @(posedge Clk)
begin
Po = Pi;
end
endmodule
